Straight and Reverse Twisted Barbed Wire Machine

This machine is used to produce double strand straight and reverse twisted barbed wire. The material used is low carbon steel wire meeting the standard of GB/T343-94. Finished products made by this machine are widely used as fencing and protecting materials in national defense, railway, expressway, agriculture and animal feeding.

This type Straight and Reverse Twisted Barbed Wire Machine is composed by two parts including straight and reverse twisting, barb winding and taking in. The machine is fitted with four disks for wire rewinding.

This machine is easy for operation, with low noise, less cost of energy. A kind of digital controlled machine to produce straight and reverse twisted barbed wire.

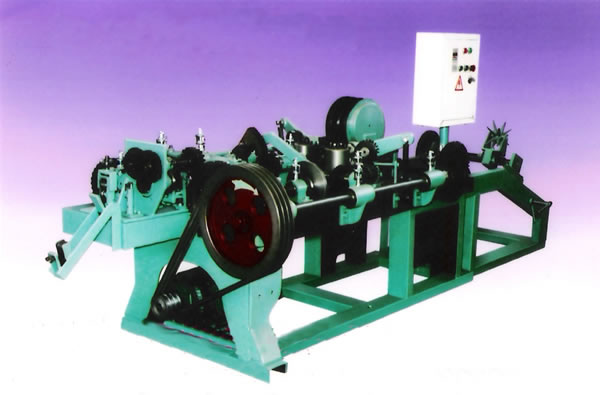

Straight and Reverse Twisted Barbed Wire Machine

Technical Parameter of this type Barbed Wire Machine

No. Item Unit Fundamental Parameter
1 Motor Model Y100L2-4
2 Motor KW 2.2
3 Main Drive Shaft Speed r/min 357
4 Wire Drawing Rate T/min 125
5 Rotating Degree of Takingup Speed   Friction gathering
6 Theoretical Yield Kg/h 50
7 Main Engine Section mm 1900X1300X980
8 Wire Takingup Section mm 1300X800X700

Specification of this type Barbed Wire Machine

No. Item Unit Technical Index
1 Distance between barbs cm 8-15
2 Twisting number 4
3 Diameter of chief wire mm 1.6-2.6
4 Diameter of barb wire mm 1.6-2.3
